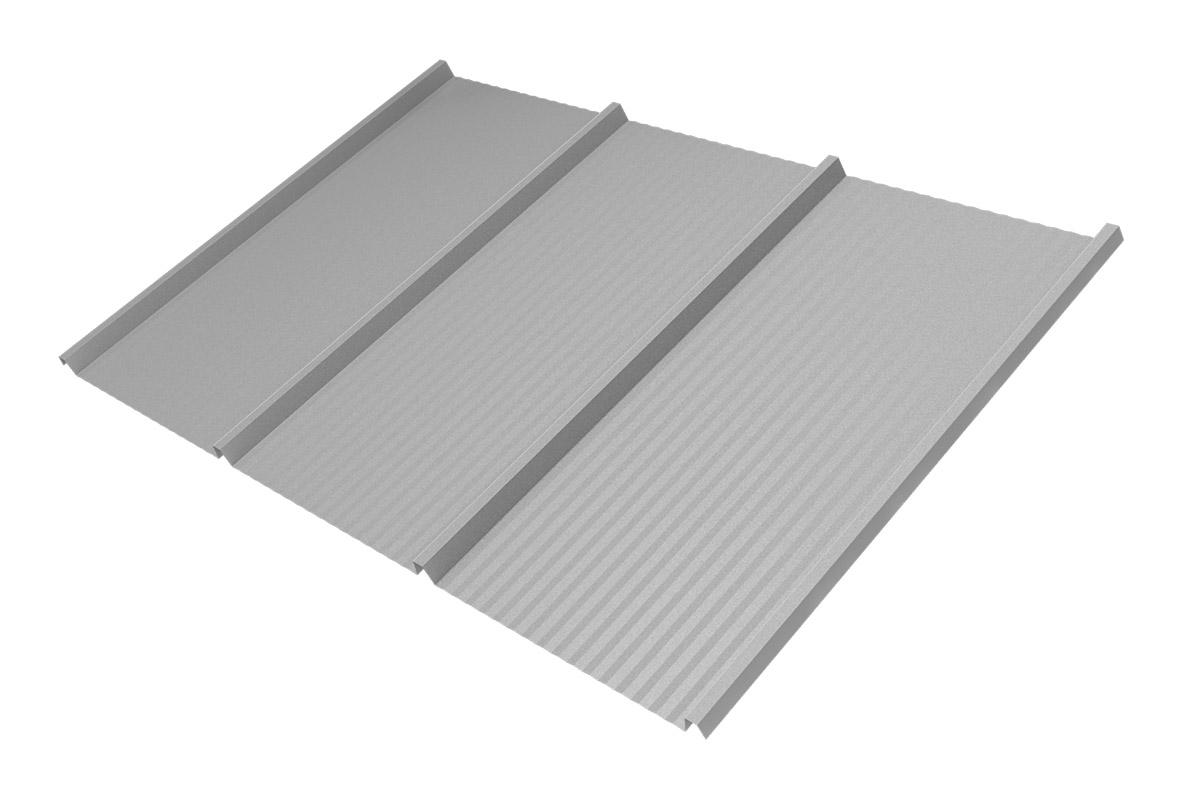

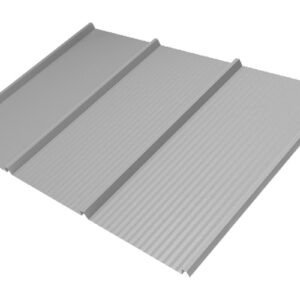

TP 26

Trapezoidal sheets are an extremely versatile and economical material used in the construction industry for roofing and facades.

We have introduced the TP 26 trapezoidal sheet, which differs in appearance from typical trapezoids.

It can be used to cover facade and roof surfaces, and is great for single-family homes, garages and small commercial buildings. Available in a wide range of colors.

Technical data

[mm]
Thickness of sheet metal 0,5
Profile height: 26
Usable width: 1090
Overall width: 1114
Material: S 250 GD
Max. recommended sheet length: 500 – 6000
Min. sheet length: 500
Application Roofs, facades, fences, garage doors, etc.
TP 26

Colors

Polyurethane - PURMAT®50 µm

Polyurethane - PURLAK®50 µm

ULTRAMAT 35 µm

Gloss polyester 25 µm

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Metallic coatings

TP 26

AZ-aluzinc

Special colors

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness warranty
PURMAT ® 50 µm 30/50 years
PURMAX ® 40 µm 20/40 years
ULTRAMAT 35 µm 15/35 years
coarse matte polyester* 35 µm 15/35 years
AZ-aluzinc 150, 185 gsm

* color availability in coarse matte polyester coating to be confirmed.
