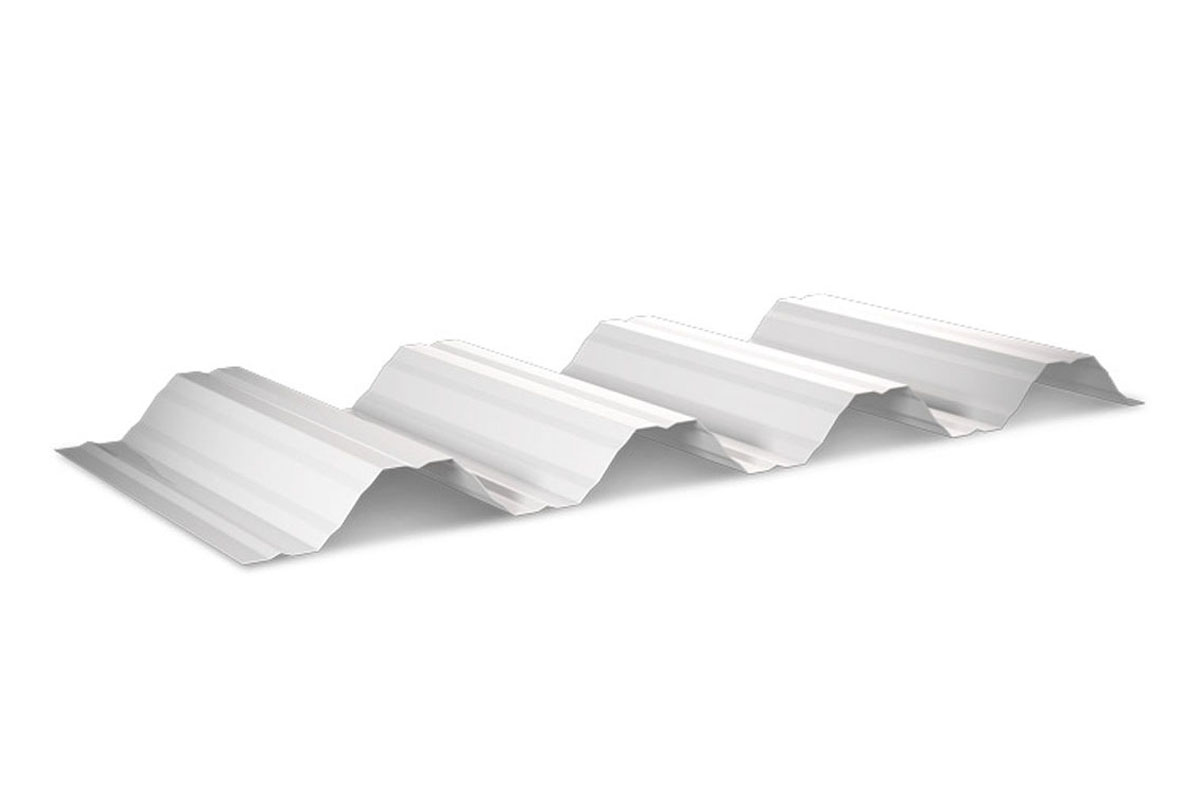

T 60P

The commercial offer of Florian Centrum Sp. z o.o. includes various types of trapezoidal sheets, and their applications are extremely wide.
High-profile trapezoidal sheets are an extremely versatile and economical material used in the construction industry, most often for covering roofs and facades of commercial and industrial buildings. They are very easy to install, which significantly shortens the term of construction of buildings.
The wide range of colors and variety of profiles and types of sheet metal (galvanized, coated) allows them to be used both on roofs and facades, as well as for load-bearing structures in individual and industrial construction.
All the trapezoidal sheets we offer are made of high-quality steel and are characterized by very good mechanical properties.

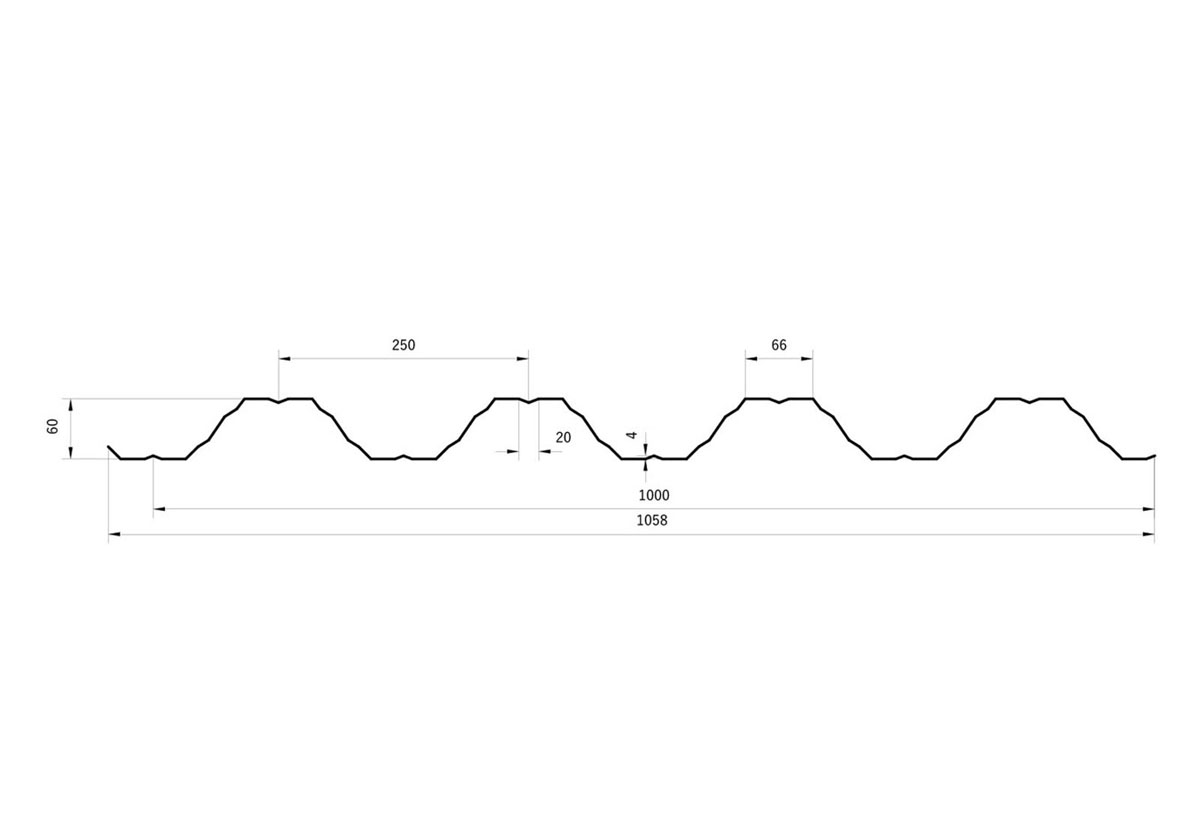

Technical data

[mm]
feed width 1250
sheet thickness 0.5 to 1.25
coverage width 1000
overall width 1058
recommended length max. 12,000/14,000 mm
* in option with anti-condensation felt.
T 60P

Colors

Polyester gloss 15 µm

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Metallic coatings

T 60P

AZ-aluzinc

T 60P

OC- galvanized

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

coatings
security		 thickness
coatings		 warranty
PURMAX ® 40 µm 20/40 years
coarse matte polyester* 35 µm 15/35 years
polyester gloss 15 µm
OC- galvanized 200,275 g/m²
AZ-aluzinc 150, 185 gsm
