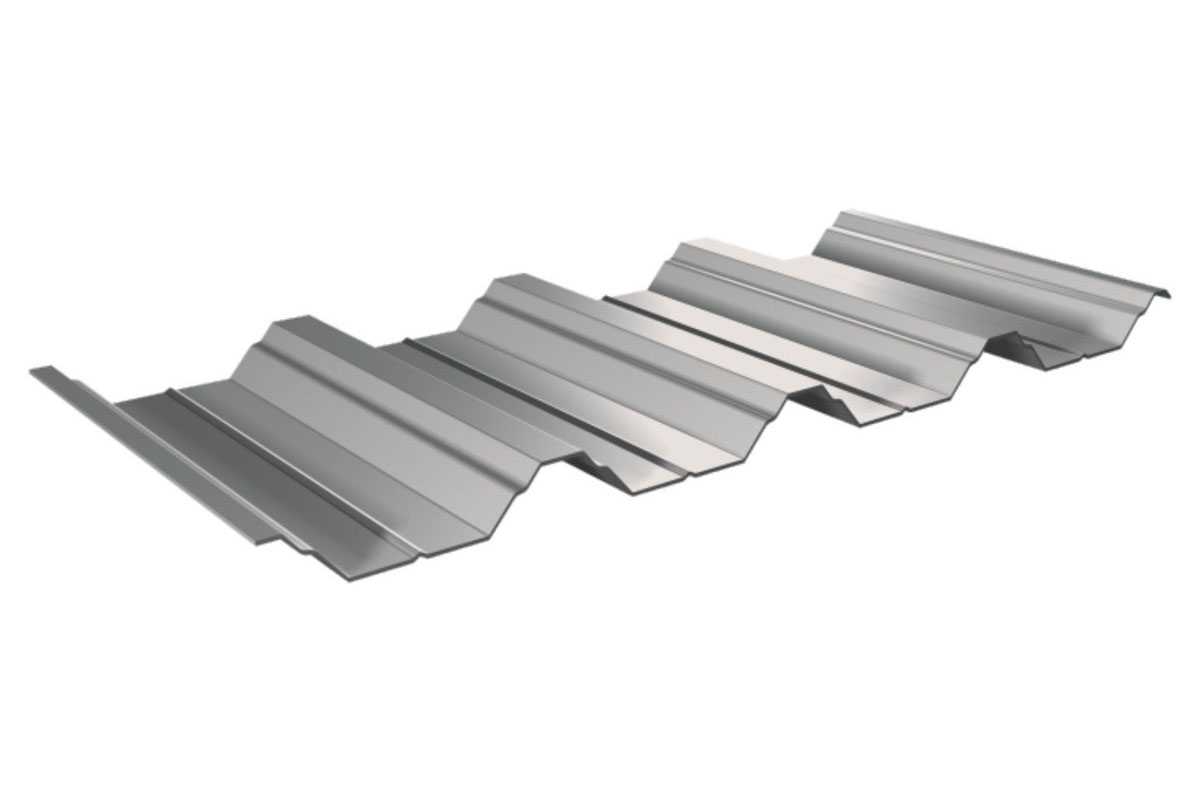

T 50P

Trapezoidal sheets are an extremely versatile and economical material used in the construction industry for covering roofs and elevations. They can be used to cover facade and roof surfaces, and are excellent for the construction of detached houses, garages and small commercial buildings. Due to their strength, they are also used on long-span roofs and load-bearing structures, in the construction of large industrial, commercial and service buildings. They are characterized by strength, structural rigidity and economical application. Available in a wide range of colors.

Technical data

[mm]
sheet thickness from 0.5 to 0.7
coverage width 1056
overall width 1085
recommended length max. ≠ 0.5 -10,000
≥ 0.7 -12,000
* in option with anti-condensation felt.
T 50P

Colors

Gloss polyester 25 µm

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Metallic coatings

T 50P

AZ-aluzinc

T 50P

OC- galvanized

Special colors

ULTRAMAT 35 µm

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness warranty
PURMAX ® 50 µm 30/50 years
coarse matte polyester* 35 µm 15/35 years
polyester gloss 25 µm 10/30 years
ULTRAMAT 35 µm 15/35 years
OC- galvanized 200,275 g/m²
AZ-aluzinc 150, 185 gsm

* color availability in coarse matte polyester coating to be confirmed.
