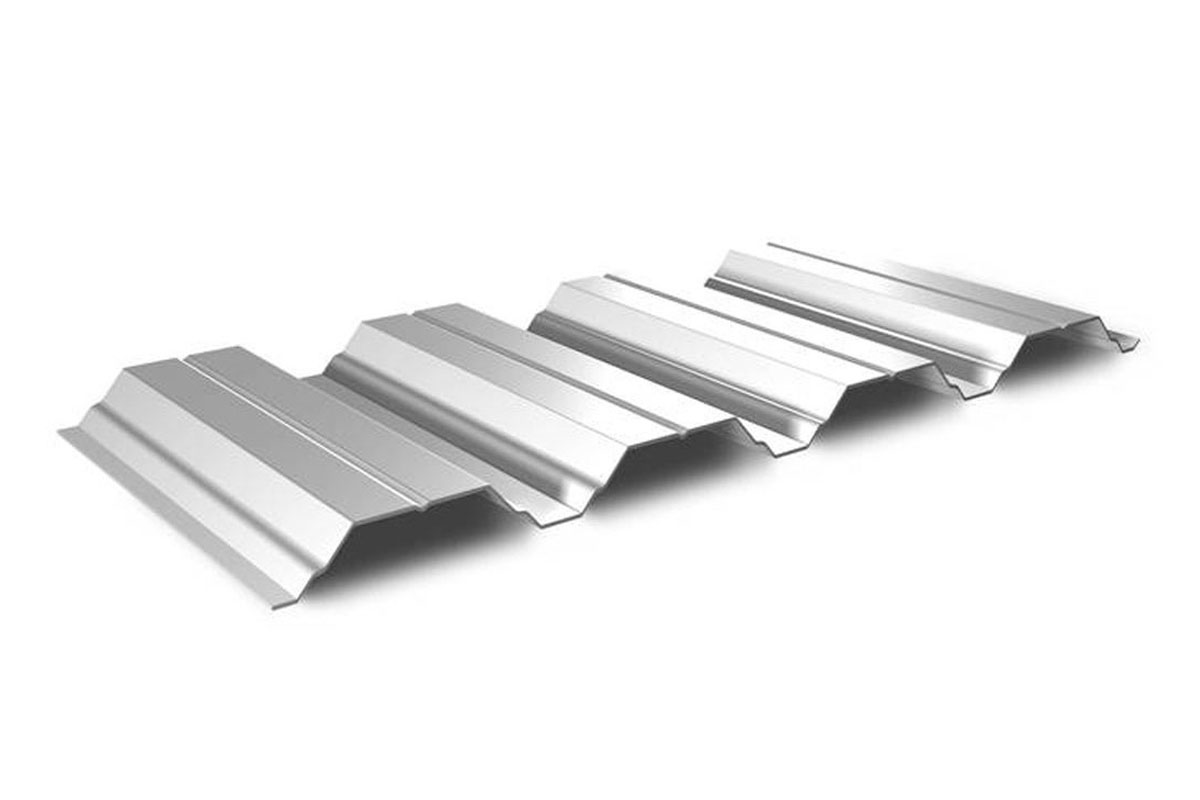

T 50P

The commercial offer of Florian Centrum Sp. z o.o. includes various types of trapezoidal sheets, and their applications are extremely wide.
High-profile trapezoidal sheets are an extremely versatile and economical material used in the construction industry, most often for covering roofs and facades of commercial and industrial buildings. They are very easy to install, which significantly shortens the term of construction of buildings.
The wide range of colors and variety of profiles and types of sheet metal (galvanized, coated) allows them to be used both on roofs and facades, as well as for load-bearing structures in individual and industrial construction.
All the trapezoidal sheets we offer are made of high-quality steel and are characterized by very good mechanical properties.

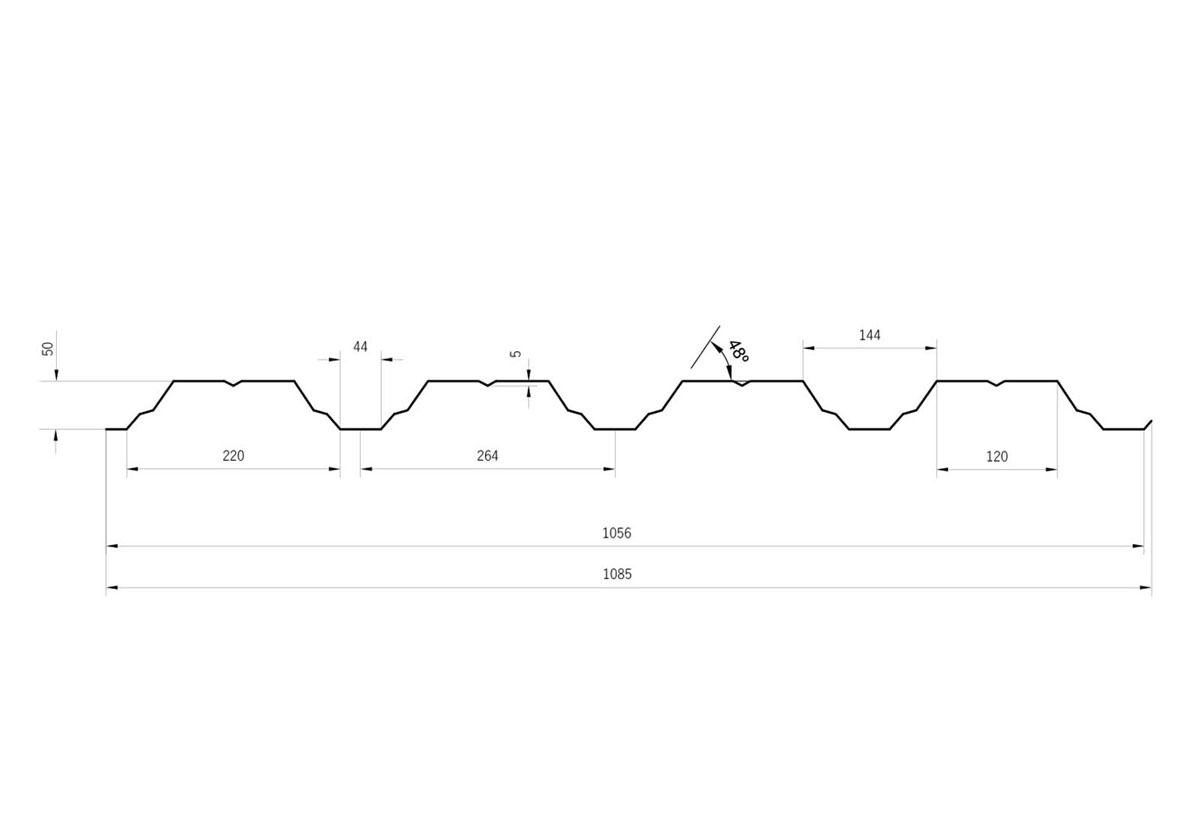

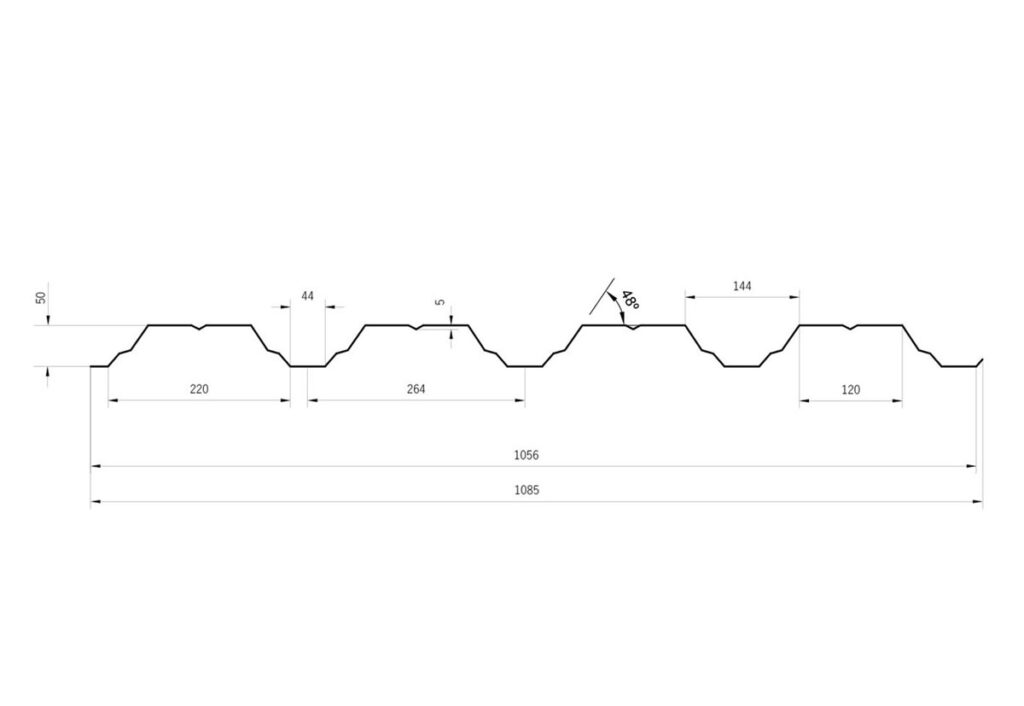

Technical data

[mm]
sheet thickness 0,5/0,7
coverage width 1056
total width roof profile 1085
recommended length max. 10,000/12,000 mm
*in option with anti-condensation felt
T 50P

Colors

Polyurethane

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Polyester gloss 15 µm

Metallic coatings

T 50P

AZ-aluzinc

T 50P

OC- galvanized

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness
coarse matte polyester* 35 µm
PURMAX® 40 µm
polyester gloss 15 µm
polyurethane 50 µm
OC- galvanized 200,275 g/m²
AZ-aluzinc 150, 185 gsm

* color availability in coarse matte polyester coating to be confirmed.
