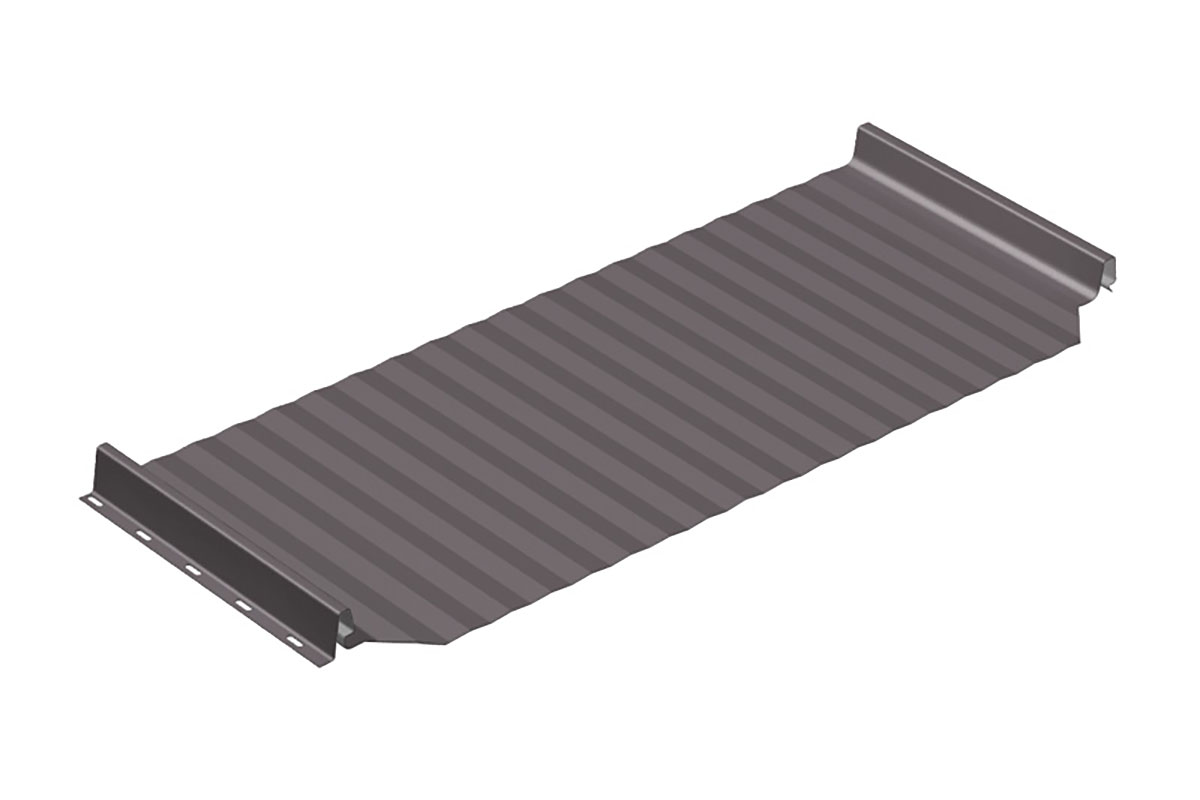

PROFILE FL- PD 510 F-S

The so-called standing seam sheet metal connection technology is one of the oldest methods used in construction. Florian offers an easy-to-install, modern version of this traditional and convenient solution. This product is successfully used on the roofs of single-family housing, newly built apartment buildings, industrial or public buildings. The so-called click connection significantly speeds up and facilitates the installation process. Panels are manufactured from high-quality coated steel sheet, to any length depending on the customer’s needs. Each panel has ready-made mounting holes for easy attachment to the structure. Available in a wide range of colors.

Technical data

Edge trim option with beveled edges to allow installation on the starter strip.

Overall width 545 mm
Usable width 510 mm
Seam height 25 mm
Material S 250 GD + Z 200 or 275
Max. recommended sheet length 9 mb
Min. sheet length 0.5 mb
Thickness 0.50 /0.70 mm
Coating polyester gloss, polyester matt, polyurethane
Application Coverage of roofs with a minimum pitch of 8o (14%)
PROFILE FL- PD 510 F-S
PROFILE FL- PD 510 F-S

Colors

ULTRAMAT 35 µm

Gloss polyester 25 µm

Polyurethane - PURLAK®50 µm

Polyurethane - PURMAT®50 µm

Special colors

PROFILE FL- PD 510 F-S

BLACKMAT

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness warranty
PURMAT ® 50 µm 30/50 years
PURLAK ® 50 µm 30/50 years
PURMAX ® 40 µm 20/40 years
ULTRAMAT 35 µm 15/35 years
polyester gloss
 25 µm 10/30 years

Accessories

PROFILE FL- PD 510 F-S

The installation of the ridge is carried out on the so-called intermediate treatment – ridge trim.
In this case, there is no need to cut places in the ridge for the seam and the need for ridge seals.
