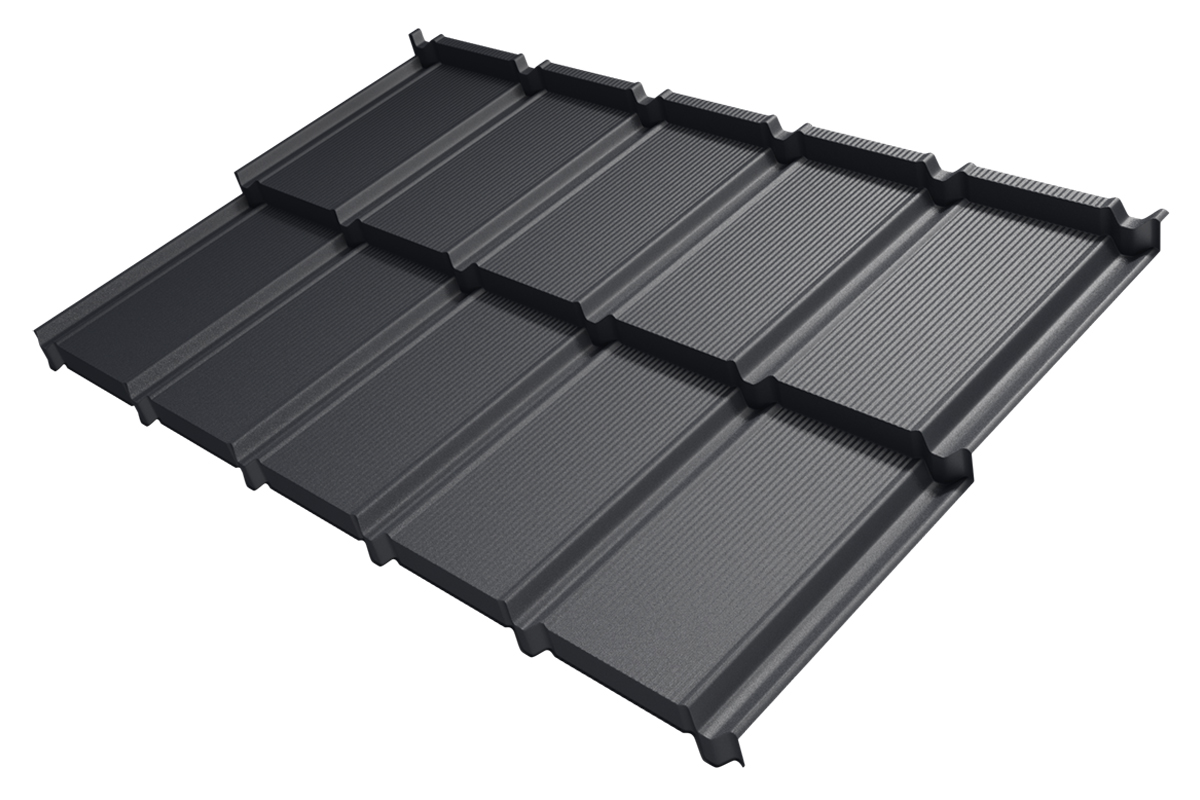

Nel NANO modular metal roofing tile

NEL sheet metal tile with nano-wave – this is the answer to further needs of investors. Technologically modified sheet metal NEL has been enriched with surface profiling, the so-called nano-wave, which strengthens and improves the rigidity of the panel. An additional advantage of NEL with nano-wave is the symmetry of the modules, which allows installation from the right or left side. The interesting shape, solidity of workmanship and elegant appearance of the sheet metal makes it look great both on buildings with contemporary design and traditional architecture.

Click and see the product recommendation

Technical data

Module length [mm] 350
Embossing height [mm] 30
Profile height [mm]. 13
Usable width [mm]. 1134
Overall width [mm] 1199
Total sheet length [mm] 720
min. slope 20°
Nel NANO modular metal roofing tile
Nel NANO modular metal roofing tile

Colors

ULTRAMAT 35 µm

Polyurethane - PURMAT®50 µm

Polyurethane - PURLAK®50 µm

Special colors

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

coatings
security		 thickness
coating		 warranty
PURMAT ® 50 µm 30/50 years
PURLAK ® 50 µm 30/50 years
PURMAX ® 40 µm 20/40 years
ULTRAMAT 35 µm 15/35 years

Examples of realizations
