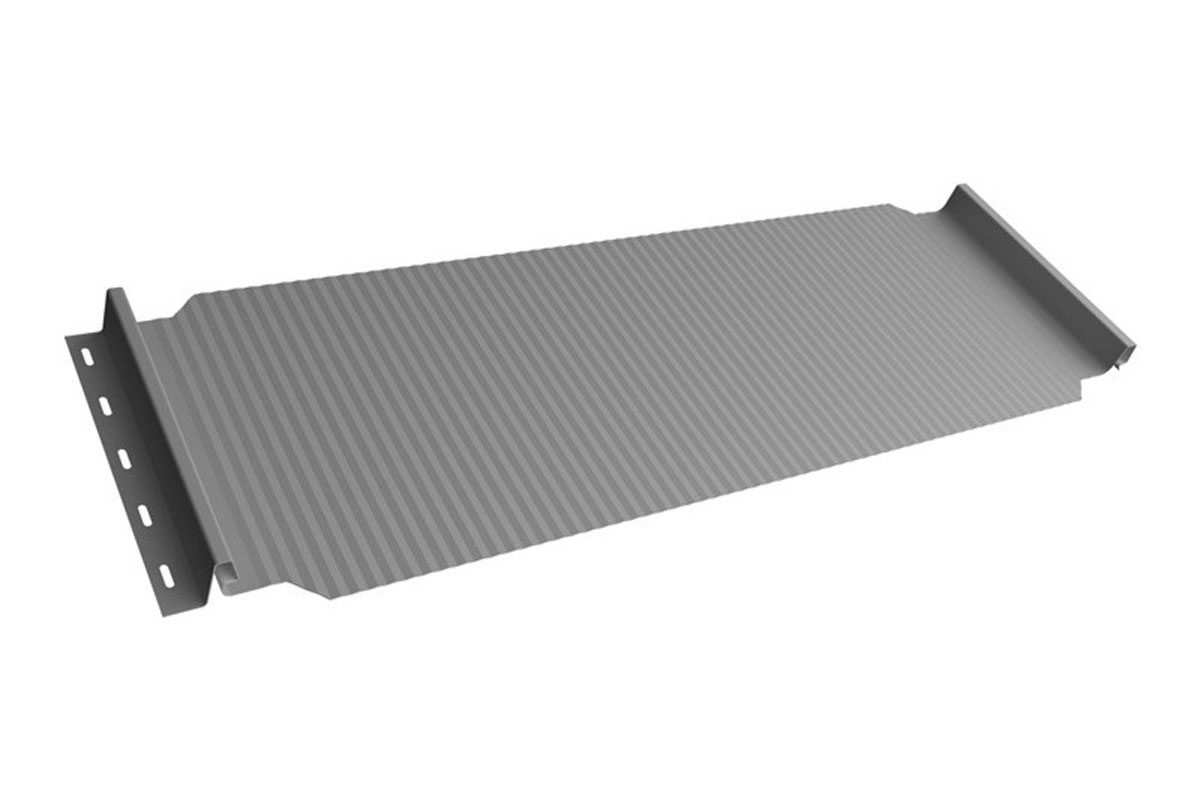

Edge trim option with beveled edges to allow installation on the starter strip.
| Overall width | 545 mm |
| Usable width | 510 mm |
| Seam height | 25 mm |
| Material | S 250 GD + Z 200 or 275 |
| Max. recommended sheet length | 9 mb |
| Min. sheet length | 0.5 mb |
| Thickness | 0.50 /0.70 mm |
| Coating | polyester gloss, polyester matt, polyurethane |
| Application | Coverage of roofs with a minimum pitch of 8o (14%) |
ULTRAMAT 35 µm
Poliester połysk 25 µm
Powłoka hybrydowa - PURMAX®40 µm
Poliuretan - PURLAK®50 µm
Poliuretan - PURMAT®50 µm
Kolory specjalne
UWAGA:
Zaprezentowane kolory blach mogą różnić się od kolorów rzeczywistych w związku z występowaniem różnic pomiędzy kartami graficznymi oraz monitorami.
| protective coatings | coating thickness | warranty |
| PURMAT ® | 50 µm | 30/50 years |
| PURLAK ® | 50 µm | 30/50 years |
| PURMAX ® | 40 µm | 20/40 years |
| ULTRAMAT | 35 µm | 15/35 years |
| polyester gloss | 25 µm | 10/30 years |
The installation of the ridge is carried out on the so-called intermediate treatment – ridge trim.
In this case, there is no need to cut places in the ridge for the seam and the need for ridge seals.
