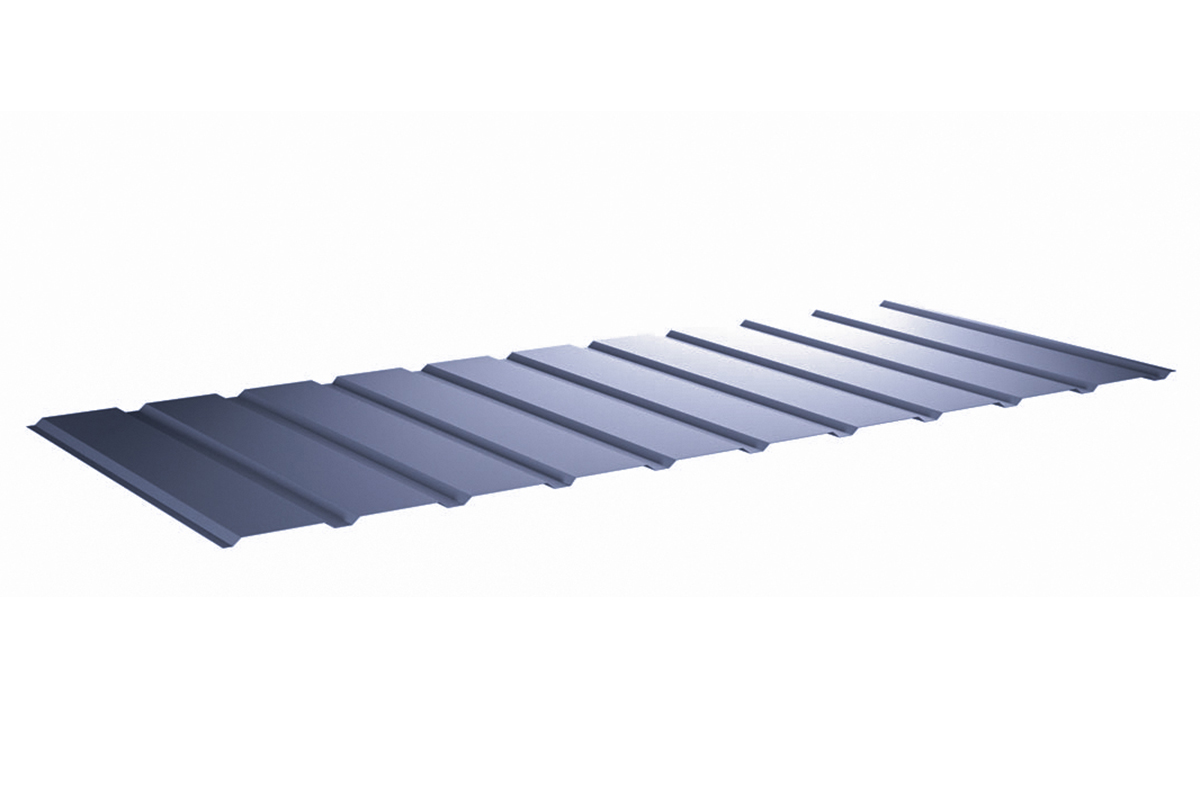

T-8 FK

Trapezoidal sheets are an extremely versatile and economical material used in the construction industry for covering roofs and elevations. They can be used to cover facade and roof surfaces, and are excellent for the construction of detached houses, garages and small commercial buildings. Due to their strength, they are also used on long-span roofs and load-bearing structures, in the construction of large industrial, commercial and service buildings. They are characterized by strength, structural rigidity and economical application. Available in a wide range of colors.

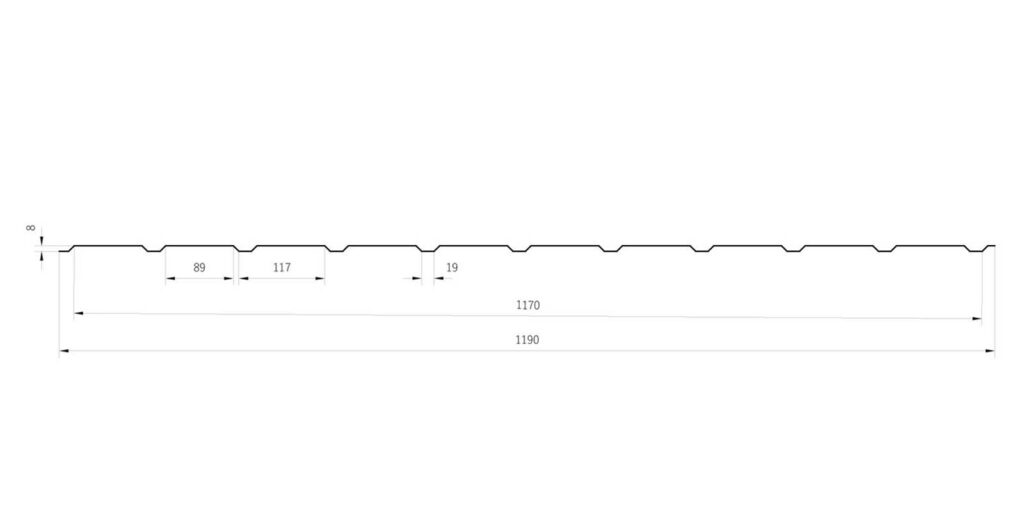

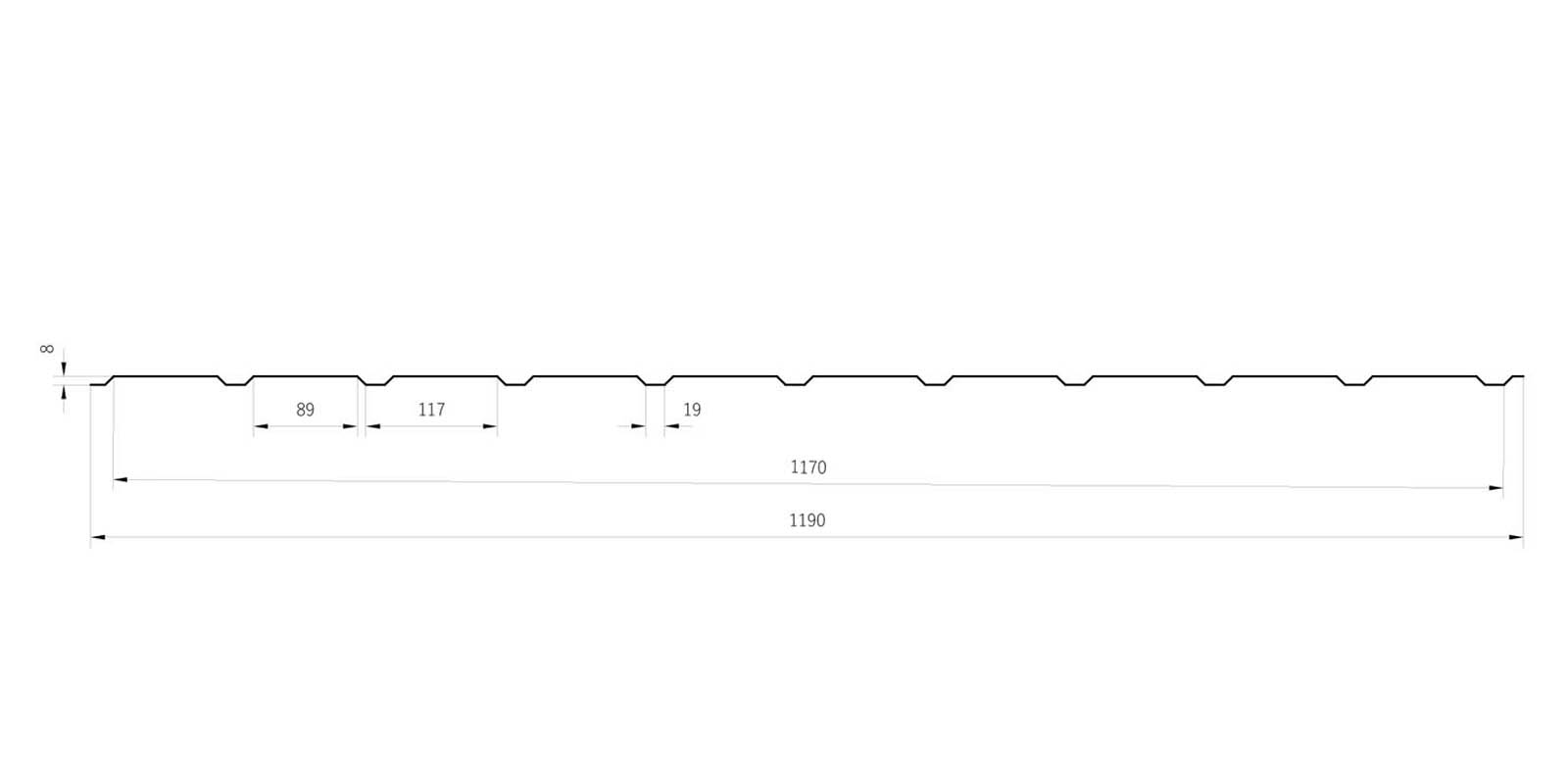

Technical data

sheet thickness [mm] from 0.5 to 0.7
coverage width 1170
overall width 1190
recommended length max, 6000
T-8 FK

Colors

ULTRAMAT 35 µm

Gloss polyester 25 µm

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Polyurethane - PURLAK®50 µm

Polyurethane - PURMAT®50 µm

Metallic coatings

T-8 FK

AZ-aluzinc

T-8 FK

OC- galvanized

Special colors

T-8 FK

Golden oak

T-8 FK

Dark walnut

T-8 FK

RAL 8023

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness warranty
PURMAT ® 50 µm 30/50 years
PURLAK ® 50 µm 30/50 years
PURMAX ® 40 µm 20/40 years
ULTRAMAT 35 µm 15/35 years
polyester matte coarse* 35 µm 15/35 years
polyester gloss 25 µm 10/30 years
OC- galvanized 200,275 g/m²
AZ-aluzinc 150, 185 gsm

* color availability in coarse matte polyester coating to be confirmed.
