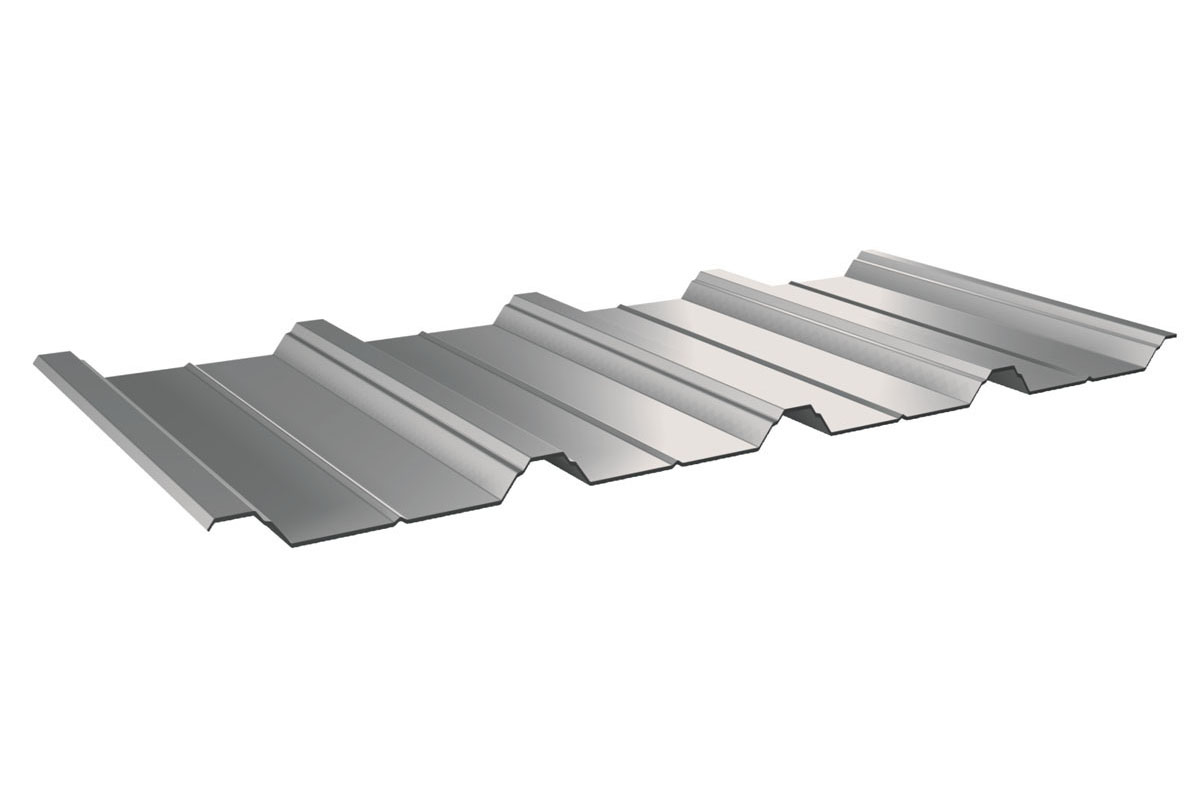

T 40

Trapezoidal sheets are an extremely versatile and economical material used in the construction industry for covering roofs and elevations. They can be used to cover facade and roof surfaces, and are excellent for the construction of detached houses, garages and small commercial buildings. Due to their strength, they are also used on long-span roofs and load-bearing structures, in the construction of large industrial, commercial and service buildings. They are characterized by strength, structural rigidity and economical application. Available in a wide range of colors.

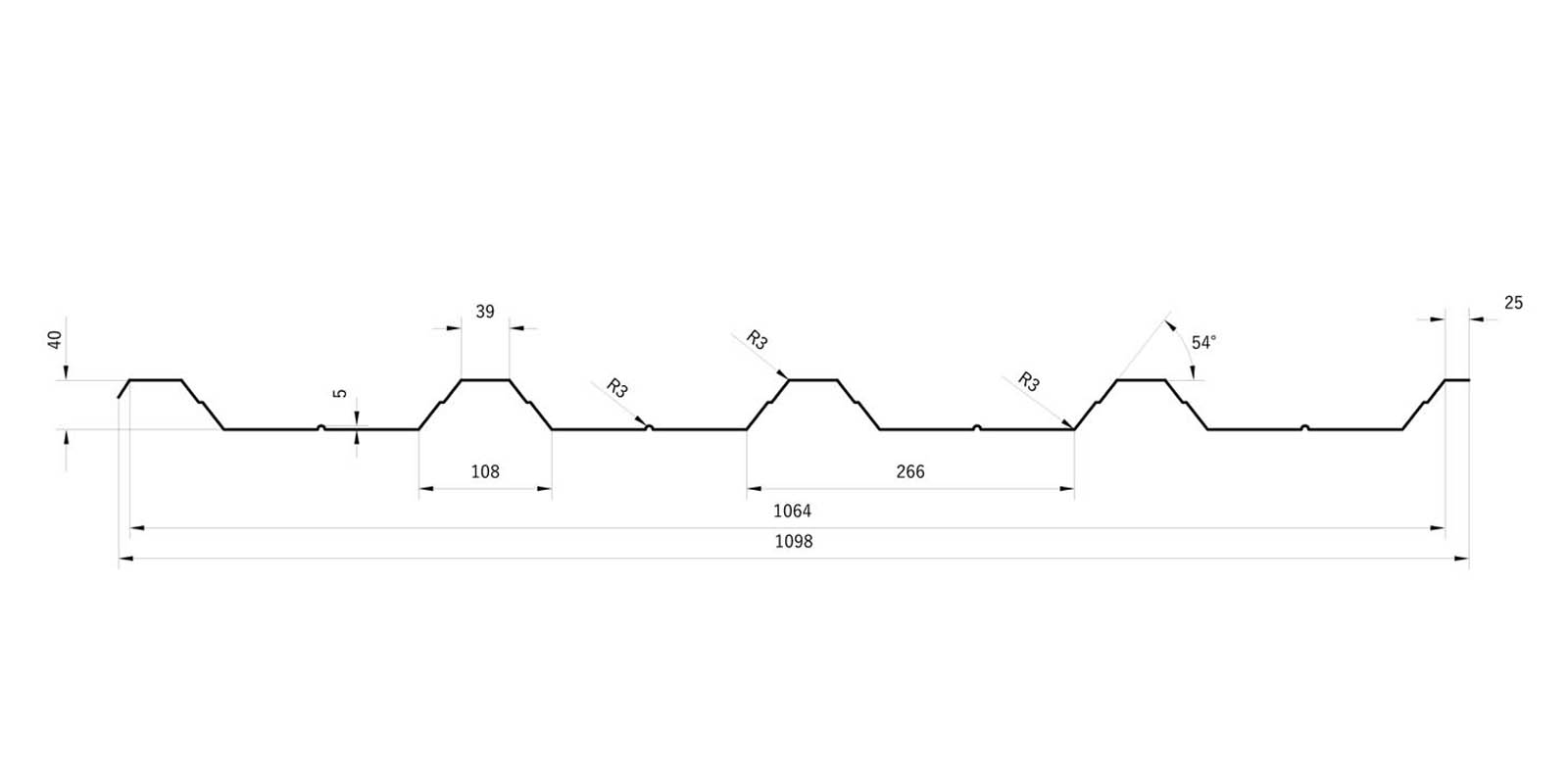

Technical data

[mm]
sheet thickness 0,5/0,7
coverage width 1064
overall width 1098
recommended length max. ≠ 0.5 – 9000
≠ 0.7 – 12,000
* in option with anti-condensation felt.
T 40

Colors

ULTRAMAT 35 µm

Poliester połysk 25 µm

Poliester mat gruboziarnisty 35 µm*

* dostępność kolorów w powłoce poliester matowy gruboziarnisty do potwierdzenia

Powłoka hybrydowa - PURMAX®40 µm

Powłoki metaliczne

Kolory specjalne

UWAGA:

Zaprezentowane kolory blach mogą różnić się od kolorów rzeczywistych w związku z występowaniem różnic pomiędzy kartami graficznymi oraz monitorami.

Coatings

protective coatings coating thickness warranty
PURMAX ® 40 µm 20/40 years
ULTRAMAT 35 µm 15/35 years
coarse matte polyester* 35 µm 15/35 years
polyester gloss 25 µm 10/30 years
Zinc 200,275 g/m²
ALUCYNK 150, 185 gsm

* color availability in coarse matte polyester coating to be confirmed.
