T-4 EKO FK Trapezoidal facade sheets Florian Centrum
Home/Trapezoidal facade sheets/T-4 EKO FK

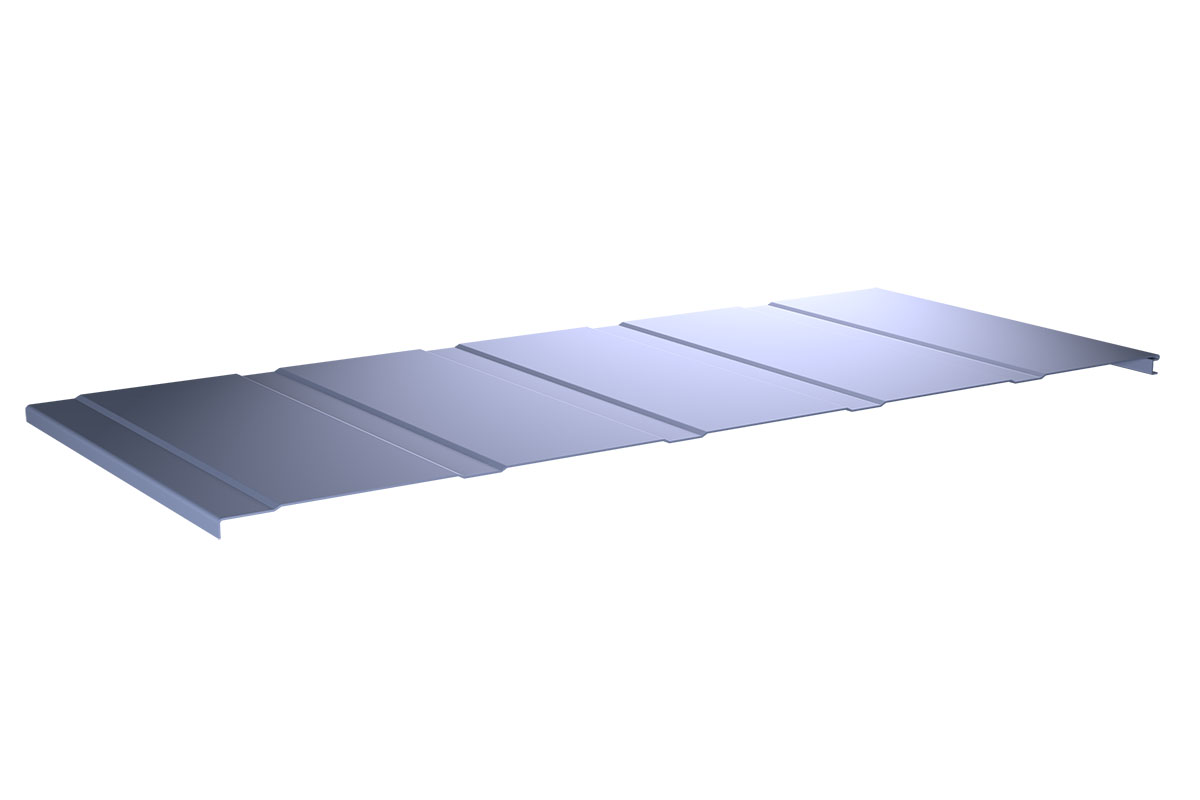

T-4 EKO FK

Trapezoidal sheets are an extremely versatile and economical material used in the construction industry for covering roofs and elevations. They can be used to cover facade and roof surfaces, and are excellent for the construction of detached houses, garages and small commercial buildings. Due to their strength, they are also used on long-span roofs and load-bearing structures, in the construction of large industrial, commercial and service buildings. They are characterized by strength, structural rigidity and economical application. Available in a wide range of colors.

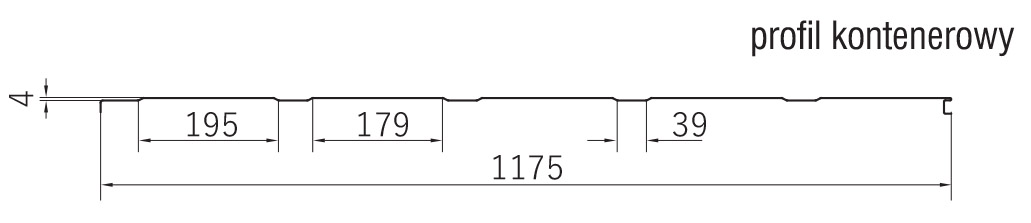

Technical data

sheet thickness [mm] 0,5
coverage width 1165
overall width 1175
recommended length max, 3000
T-4 EKO FK

Colors

Gloss polyester 25 µm

Coarse-grained matt polyester 35 µm*


* availability of colors in the matte coarse-grained polyester coating to be confirmed

Special colors

T-4 EKO FK

Golden oak

T-4 EKO FK

Dark walnut

T-4 EKO FK

RAL 8023

NOTE:

The presented sheet metal colors may differ from the actual colors due to differences between graphics cards and monitors.

Coatings

protective coatings coating thickness warranty
polyester matte coarse* 35 µm 15/35 years
polyester gloss 25 µm 10/30 years

* color availability in coarse matte polyester coating to be confirmed.
